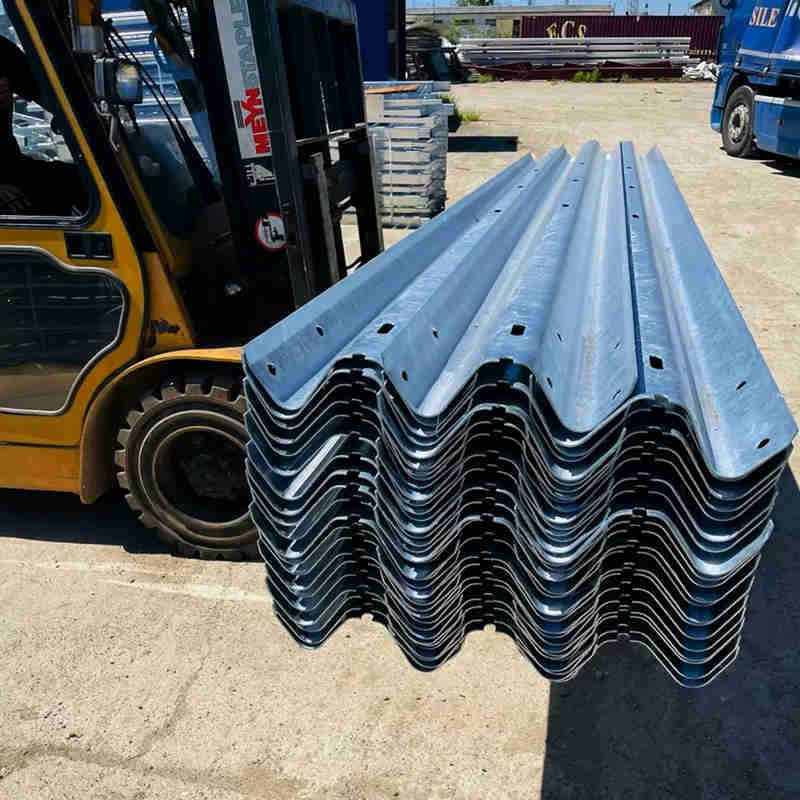

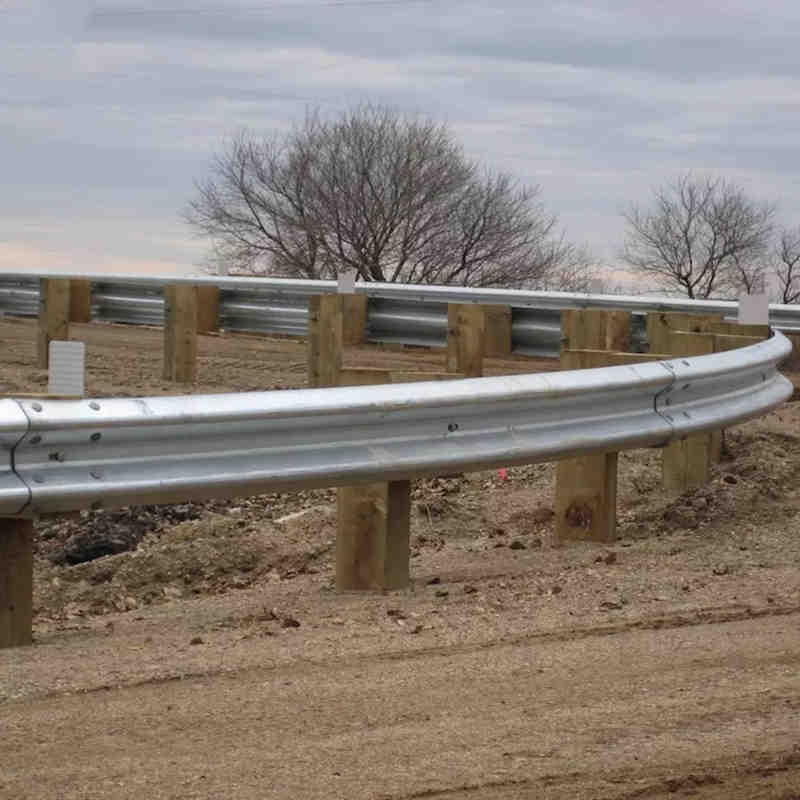

Guardrail Beam With Wooden Post

Classification: Guardrail Beam

Brand Name: FORST

Brief Introduction:
Product Application:A highway guardrail, which is a continuous structure in which corrugated steel guardrails arespliced to each other and supported by a main column. The effect of the vehicle on absorbingenergy during its collision is not easy to be destroyed, and it can also protect the vehicle an...

Details

Quick Details

Place of Origin

Shandong, China

Brand Name:

forst

Product name

Haghway Guardrail W Beam

Material

S235JR S355JR

Surface treatment

Hot Dipped Galvanized

Feature:

Impact and corrosion resistant

Certificate:

ISO9001,AASHTO M180

Thickness:

2.5mm-4.0mm

Application:

Roadway Safety

Length

4130mm,4320mm

Keyword:

Traffic Road Steel Barrier

Color:

silver white

MOQ:

100pcs

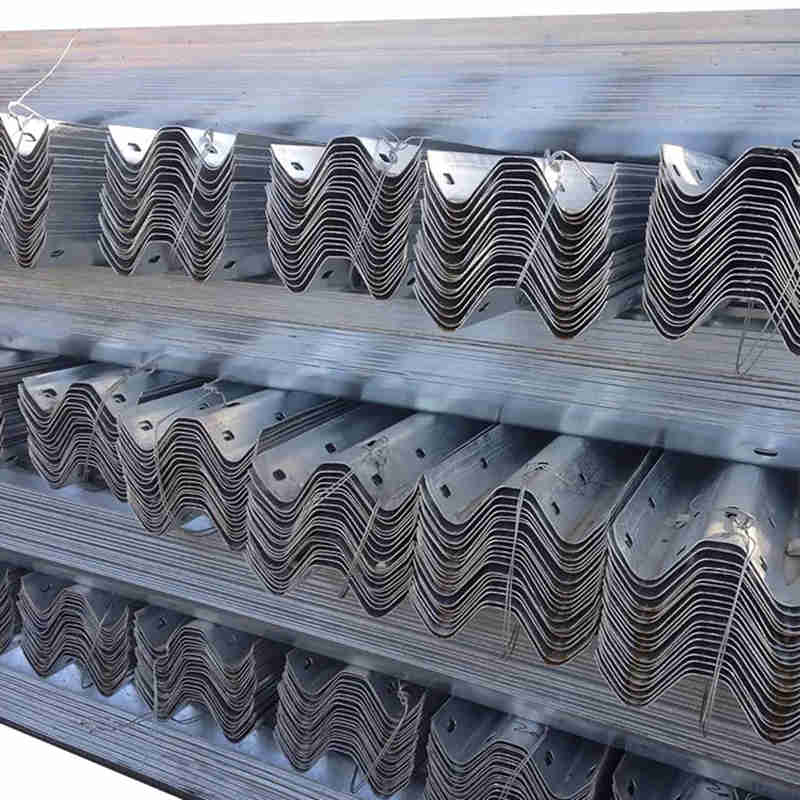

Packaging Details

20 pieces a pack

Shipping port

Qingdao Tianjin or other

Supply Ability

15000 Ton/ per Year

Production flow chart


Product parameter

Normal Sizes

Length(mm):2000/2320/3200/3810/4000/4320 W:306/310/312/380

Height(mm):80/82/83/85

Thickness(mm) :2.5/2.75/3.0/4.0

Available in different sizes.

Materail

S235JR,S355JR

Profile

W beam , Thrie beam

Surfacce treatment

Hot dipped galvanized or plastic sprayed coating

Applicabele Standards

JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL RG620 (German) or any other International Standards

Base Steel

Grade S235JR ( according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or S355JR (ASTM A529M 1994)

Zinc layer thickness

550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request

Features

Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,environmental protection, etc.

Relevant Parts

Required for Guardrails Post, Spacer (C, U and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal,Reflectors

MOQ

100pcs

Price Terms

FOB,CFR,CIF

Payment Terms

T/T,L/C at sight

Production workshop

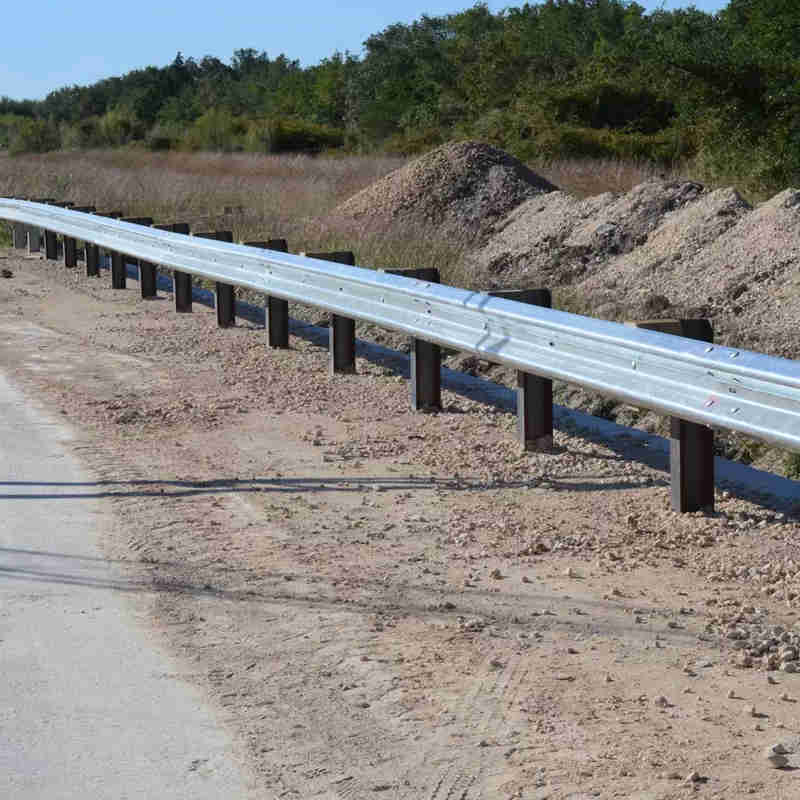

Installation renderings

W-beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects.

W beam guard railings can be used in expressway and highways to absorb maximum energy of the impact force when collision occures and reduce harms to cars and people. It can also protect the vehicles against skidding off roads, especially mountain roads and bridges and prevent the pedestrians from the danger of walking across highways.

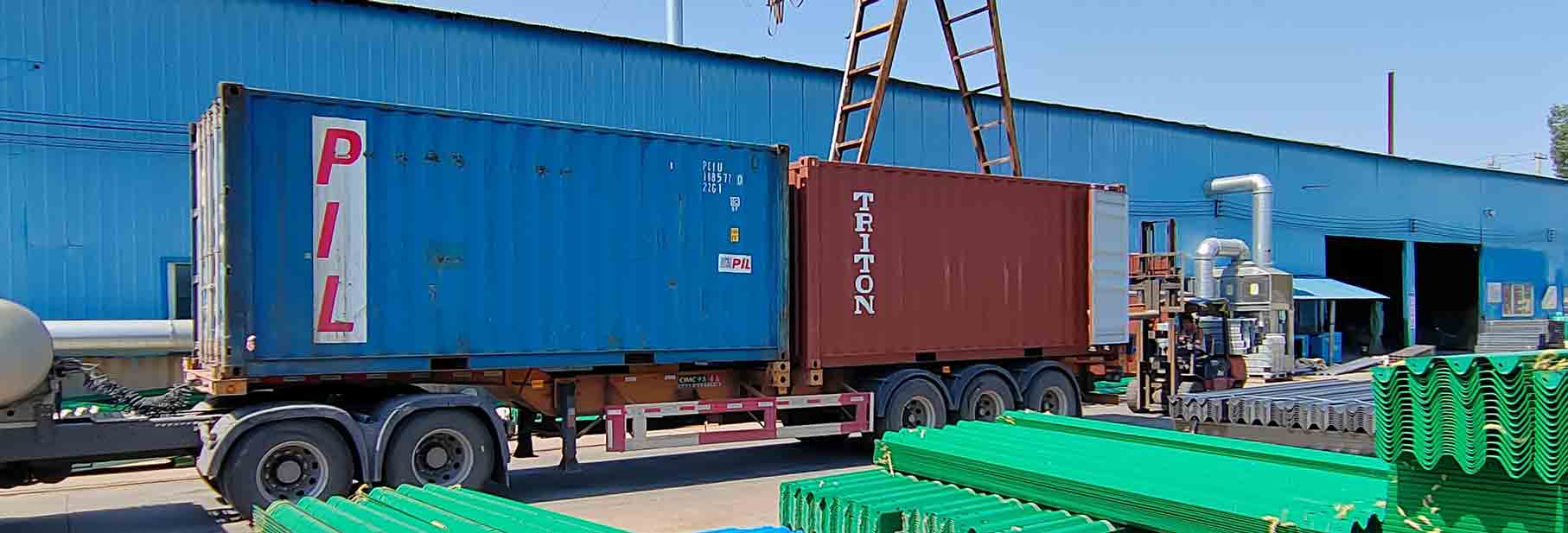

Packaged and shipped
