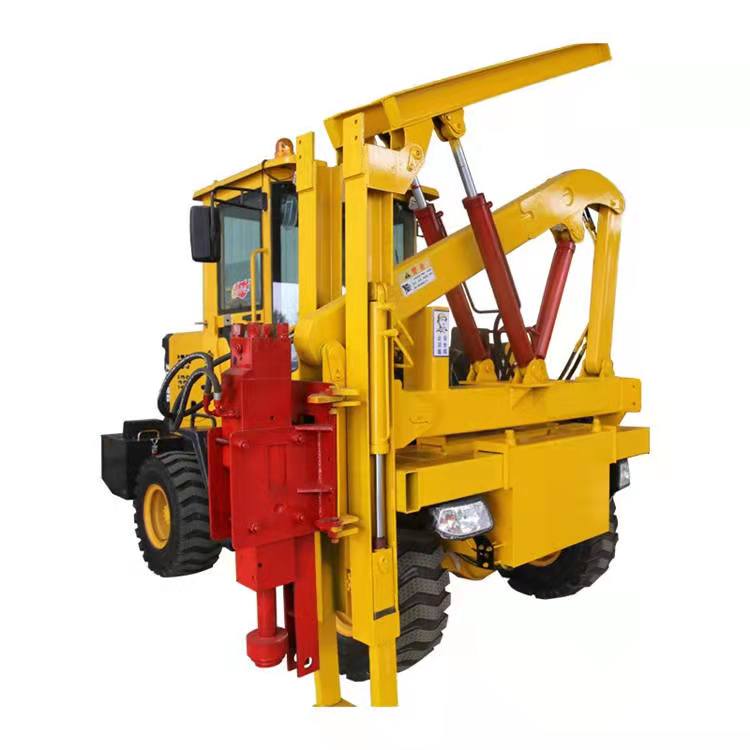

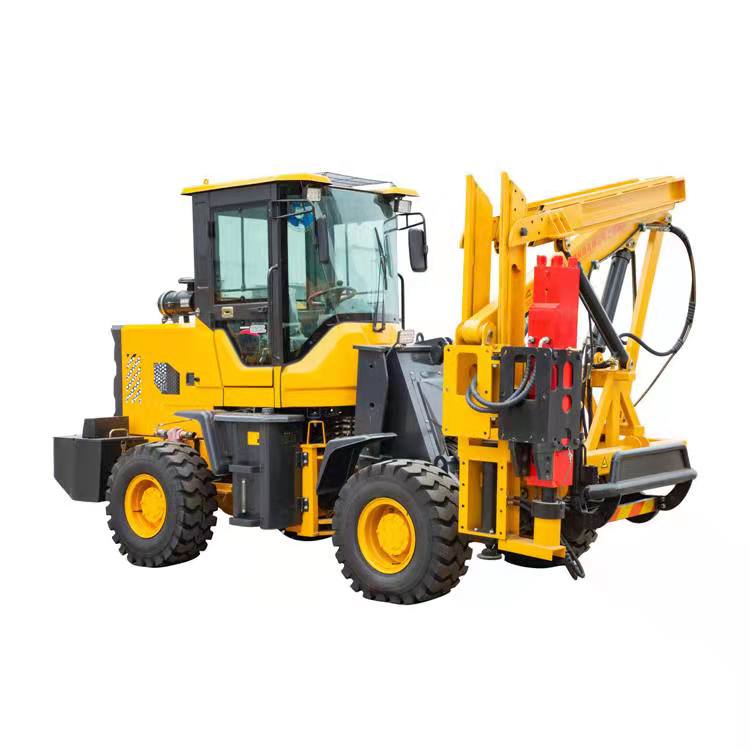

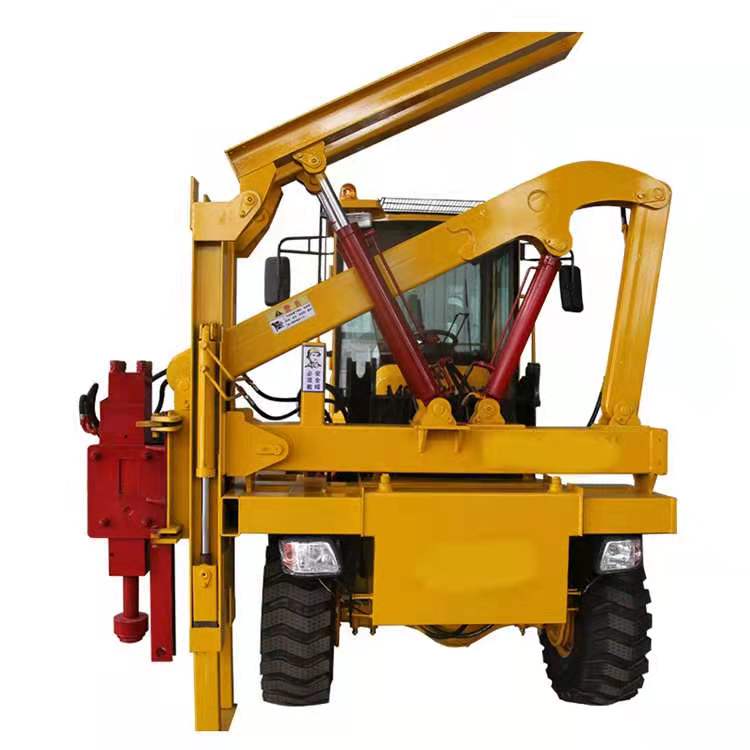

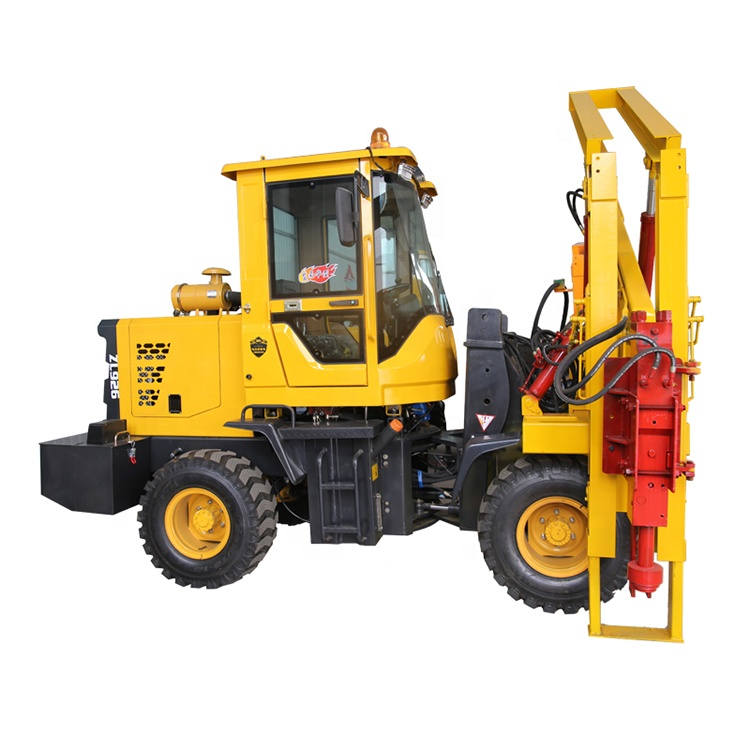

Highway Guardrail Pile Driver

Classification: Highway Guardrail Pile Driver

Brand Name: FORST

Brief Introduction:
Highway Guardrail Pile Driver(Pile driver、Pile puller、driller) Parameter NameUnitParameterParameter NameUnitParameterEngine rated powerKwA 33KW,A 51KWEngine BrandAChina FAW XichaiA Weichai EngineMachine Size(In Working)mm3250×2000×3400...

Details

Highway Guardrail Pile Driver(Pile driver、Pile puller、driller)




Parameter Name

Unit

Parameter

Parameter Name

Unit

Parameter

Engine rated power
KwA 33KW,A 51KW



Engine Brand


A China FAW Xichai
A Weichai Engine

Machine Size(In Working)
mm3250×2000×3400    (Column height after folding2400)
Impact Frequency of Hydraulic Hammer
次/min500-900

Piling Height
Meter2.7
Hydraulic Hammer Working Flow
ml/r30-50

Machine Weight
kg3200
Hydraulic Hammer Working Pressure
Mpa12~16

Hydraulic System Working Pressure
MPa16
Air Flow
M3/min8

Hydraulic System Flow
ml/r50
Working Air Pressure
MPa0.5-1

Drilling Diameter
mmØ80~ ø180
Drilling Depth
Meter0.5-1.8

Drilling Speed
mm/min500
Gradeability
Angle<=25°

Driving speed
Km/n10~15
Towing speed
KM/h30-40

Drill rod diameter
mm75-85
Drilling Depth
次/min1200

Hydraulic Hammer Model
kg360



Remarks:This machine has hydraulic power steering, four-wheel hydraulic brake, collapsible column, on-board steering, high-speed drilling machine, hydraulic outrigger.
